Engineered Bamboo – The Future of Sustainable Construction

By Nidhi DhullMay 30 2024Reviewed by Susha Cheriyedath, M.Sc.

Given the substantial energy consumption associated with traditional construction materials and the scarcity of other natural alternatives such as wood, bamboo has emerged as a sustainable option for infrastructure development​​​​​​.¹

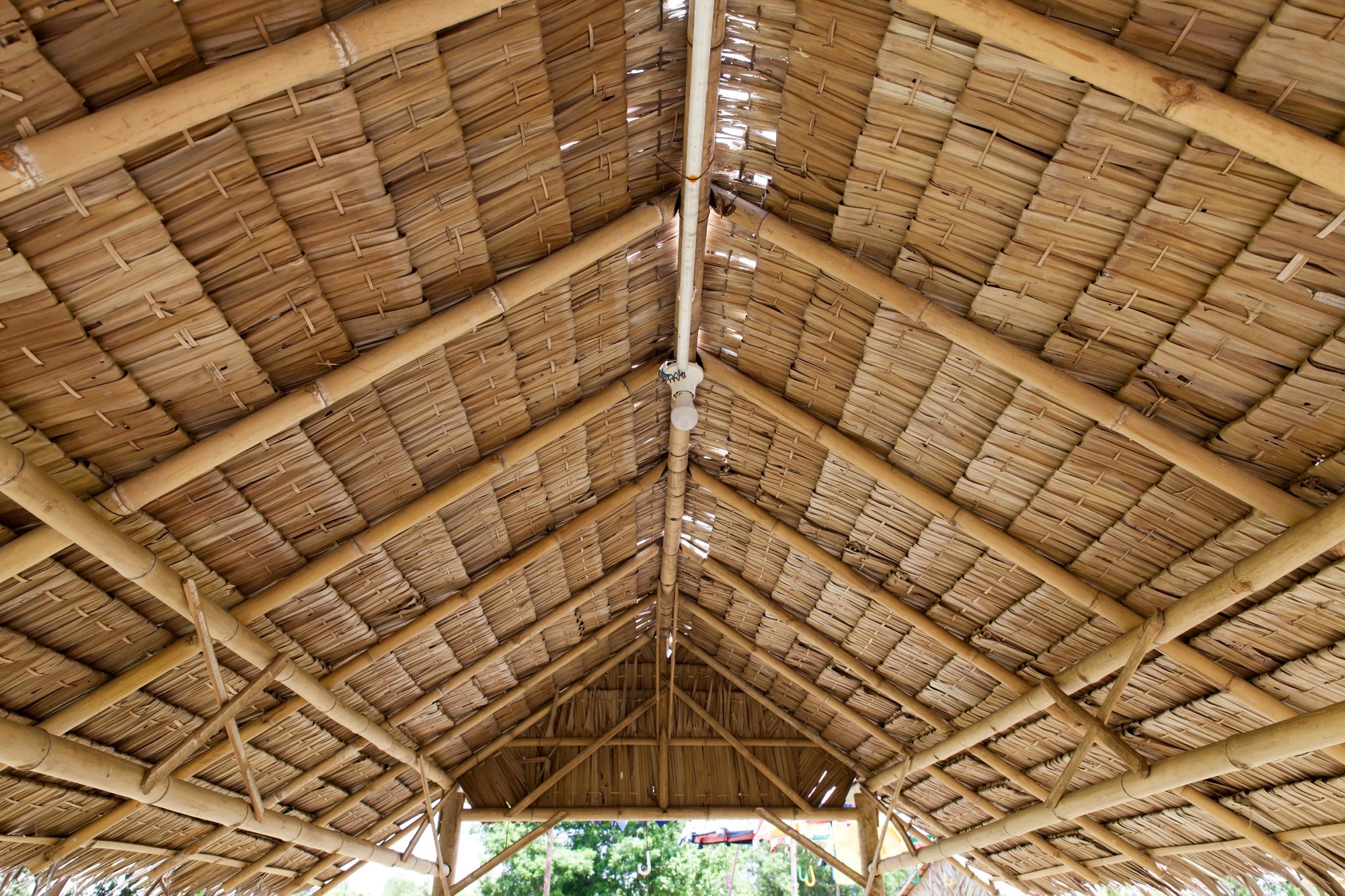

Image Credit: Meaw_stocker/Shutterstock.com

Bamboo is a low-carbon, rapidly growing plant with rich resources and exceptional wood properties.² According to the target construction application, bamboo can be engineered into various forms, such as laminates and scrimbers. Apart from using bamboo culms as beams and columns, bamboo fibers can replace steel reinforcement in concrete, enhancing its shear and flexural behavior.¹ This article explores various applications and advantages of engineered bamboo products.

Production of Engineered Bamboo

Bamboo engineering involves modifying round bamboo through processes such as cutting, heating, carbonizing, drying, gluing, and reorganizing.^1,2 The target-specific size and stable performance of engineered bamboo help overcome the drawbacks associated with round bamboo, including size, shape, and connection.² Common engineered bamboo products include plywood, mat boards, curtains, composite plywood, particle boards, strip laminated lumber, veneers, and restructured bamboo.^1,2

Laminated bamboo is created by pressing and flattening bamboo culms (stems) to form uniform-sized strips, which are then glued together in layers to form laminated boards or lumber, also known as glued bamboo.^1,2 Alternatively, bamboo scrimber is produced by crushing bamboo strips and rolling them into fiber bundles. These bundles are treated with adhesives and compressed at high temperatures to create compacted bamboo scrimber.¹

The production of restructured bamboo requires more processing. It uses bamboo filaments and fiber composites, which are dried, dipped, assembled, and hot-pressed to solidify. This engineering material offers high strength, high density, and uniform texture.² Additionally, bamboo-reinforced concrete, made from the fibers growing along the culm, serves as a sustainable alternative to conventional steel reinforcement.¹

Applications in Construction

Bamboo-based construction is not a new concept, having been utilized in buildings throughout history.^1,2 Due to its moderate versatility, bamboo presents a viable natural alternative to synthetic materials in the construction sector.

For example, bamboo culms are in significant architectural demand for scaffolding and resort construction. Bamboo can be engineered for use in columns, walls, roof purlins, and poles due to its uniform strength in both longitudinal and lateral directions.¹

Bamboo laminated lumber also boasts superior mechanical properties and can substitute engineered wood in stress-bearing components such as beams, columns, and boards.² Additionally, laminated bamboo sheets can be used in a similar manner to wooden plywood.¹ Scrimber, engineered from bamboo bundles, demonstrates enhanced moisture absorption and swelling resistance, making it suitable for decorating structures and building furniture.¹

The load-carrying properties of bamboo-reinforced concrete beams are comparable to those made from steel-reinforced concrete. Moreover, adhesives ensure water resistance of bamboo reinforcement while hose clamps prevent slippage. Thus, bamboo reinforcement enhances the strength and ductility of a shear wall.¹

Advantages

Engineered bamboo provides numerous environmental and structural benefits. As a low-carbon and renewable biomass material, bamboo is easily degradable. During its rapid growth cycle, which takes four to six years to reach maturity, bamboo absorbs a significant amount of carbon dioxide. When considering its entire life cycle—from growth and engineering to construction, operation, maintenance, and disposal—bamboo stands out as an environmentally friendly material.²

In construction applications, bamboo offers several advantages:²

• High tensile strength and strength-to-weight ratio
• Lightweight
• Uniformity and good stability
• Wear resistance

Additionally, bamboo's socioeconomic benefits include durability, low-cost availability, and excellent earthquake resistance due to its ductility and elastic recovery capabilities.^1,2

Although bamboo's tensile strength is lower than that of steel, it surpasses that of aluminum and wood. This makes bamboo boards, sheets, and veneers excellent alternatives to traditional wood-based construction materials.¹ Bamboo fibers also enhance the flexural strength, crack control, and ductility of concrete, providing better tensile behavior compared to plain concrete and offering higher impact resistance.¹

Challenges

While engineering bamboo production has been a significant breakthrough in the utilization of bamboo, it still faces several challenges.²

1. Instability in Physical Properties: The inherent instability of bamboo's physical properties limits its durability and broad application in construction projects. The low bearing capacity of a single round bamboo culm complicates node connections, making it prone to splitting and damage.²

2. Susceptibility to Environmental Conditions: The organic constituents of bamboo—cellulose, hemicellulose, and lignin—are similar to those of wood and are affected by environmental factors such as light and moisture.² High moisture content degrades bamboo's mechanical properties, including its tensile, compression, and shear strength.¹ Additionally, the organic matter in bamboo makes it vulnerable to insect damage during storage and processing. Without antiseptic treatment, rotten and mildewed bamboo is unsuitable for permanent construction.²

3. Dependence on Local Availability: Despite being available in most parts of the world, bamboo's application in construction is often constrained by its local availability. This geographic limitation affects its widespread adoption.

4. High Costs and Limited Output: The cost of engineered bamboo products remains high, and production output is limited. These factors reduce the competitiveness of engineered bamboo for building structures. To overcome this, efficient and stable production processes are needed to lower costs and promote the use of engineered bamboo in construction.

Efforts to address these challenges are essential for realizing the full potential of bamboo as a sustainable and practical construction material.²

Latest Developments

Despite various challenges, bamboo is being innovatively employed in the construction sector. Recent advancements highlight its potential in diverse applications:

1. Railway Track Construction: A study published in Infrastructures has proposed using bamboo for railway track construction. Bamboo's desirable mechanical properties, such as versatility, durability, low energy consumption, low carbon footprint, lightweight nature, and ease of handling, make it an ideal material for constructing sleepers. Engineered bamboo products like plywood and scrimber are preferred over traditional timber for sleepers. However, the long-term performance of bamboo sleepers, particularly in regions with unstable weather conditions, requires further investigation.³

2. Low-Cost Housing: Another study published in Sustainability presented bamboo as a sustainable material for constructing low-cost housing using bahareque technology. Bahareque walls, known as engineered bahareque or composite bamboo shear walls, offer exceptional code-compliant strength, ductility, and durability. These characteristics make them highly suitable for affordable housing in seismic-prone lower- and middle-income countries with abundant bamboo resources.

3. Community Involvement: Local communities can actively participate in bamboo processing and constructing their homes under technical guidance, enhancing the social sustainability of engineered bamboo. This approach not only provides affordable housing solutions but also empowers communities by involving them directly in the building process.

These developments underscore the growing recognition of bamboo as a viable and sustainable construction material, with ongoing research and innovation aimed at addressing its challenges and maximizing its benefits.⁴

Future Prospects

The production process and environmental factors significantly influence the functionalities of engineered bamboo. To fully harness its potential in construction, future research should focus on integrating laboratory-measured physical and mechanical properties of engineered bamboo into actual structural design. This can be achieved through rigorous experimental research and theoretical analysis, ensuring both safety and economic viability for bamboo in the construction sector.²

As the potential for large-scale applications of engineered bamboo becomes more apparent, the demand for this material is likely to increase, which could drive up costs. To address this, governments should implement measures to ensure the local availability of bamboo, particularly in low- and middle-income regions.³ Additionally, the development of technical standards and evaluation indicators is essential to support and promote the commercial-scale construction of engineered bamboo structures.²

By addressing these areas, the construction industry can effectively leverage the benefits of bamboo, fostering sustainable and economically viable building practices for the future.

References and Further Reading

1. Fahim, M., Haris, M., Khan, W., & Zaman, S. (2022). Bamboo as a Construction Material: Prospects and Challenges. Advances in Sciences and Technology, 16(3), 165–175. https://doi.org/10.12913/22998624/149737

2. Gupta, S. (2024). Research progress on the application of engineered bamboo in building structures. Academic Journal of Architecture and Civil Engineering, 2(1). https://doi.org/10.61784/ajace240102

3. He, X., Jia, W., Dong, Y., & Siahkouhi, M. (2023). The Application of Bamboo in the Railway Industry: A Sustainable Solution for Track Construction. Infrastructures, 8(12), 174. https://doi.org/10.3390/infrastructures8120174

4. Bredenoord, J. (2024). Bamboo as a Sustainable Building Material for Innovative, Low-Cost Housing Construction. Sustainability, 16(6), 2347. https://doi.org/10.3390/su16062347
