As the construction industry strives to meet its environmental commitments and sustainability goals while staying economically viable, it is increasingly turning to innovative concepts in terms of working practices and materials.

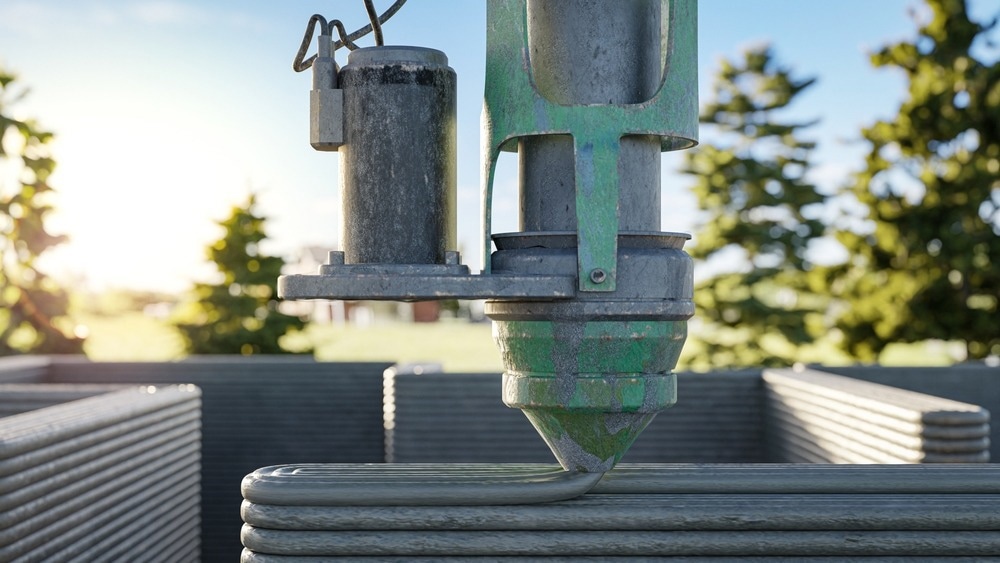

Image Credit: guteksk7/Shutterstock.com
Among the various innovative material and technological concepts developed in recent years, 3D-printed concrete has emerged as one of the most interesting, presenting many potential benefits for the construction industry and some unique challenges. This article will explore this potentially revolutionary construction method.
How Does 3D Concrete Printing Work?
3D printing, also known as additive manufacturing, has gained popularity in multiple industries over the past few years. This technology differs from traditional subtractive manufacturing, as it constructs products layer-by-layer from raw materials, offering benefits such as reduced waste, lower cost, quicker production times, and improved environmental friendliness.
3D concrete printing, a specialized branch of additive manufacturing, utilizes specially formulated cement and concrete mixtures instead of materials common in regular 3D printing, such as polymer filaments.1
Traditional concrete is unsuitable for 3D printing because it does not correctly adhere to previously printed layers and can clog the nozzle, leading to significant problems with print integrity and quality.2
The machinery used for 3D concrete printing is considerably larger than that used for traditional 3D printing, as it is designed for constructing entire buildings. This process employs advanced, specialist CAD software that emphasizes geometric precision to ensure proper build quality.1
Types of 3D Printers for Concrete Construction
In the 3D concrete printing industry, two primary types of printers are utilized: robotic arm and gantry printers, each serving different purposes.
Gantry systems are favored for large-scale projects and structural work due to their suitability for expansive programming and cost efficiency. They comprise a hanging print head in a large frame, enabling easy programming.
Robotic arm printers, although not as widely adopted as gantry systems, offer superior precision and portability. However, they face challenges with scaling up for larger projects.1
Evaluating 3D Printed Concrete: Advantages and Disadvantages
Like any construction method, 3D concrete printing offers both advantages and disadvantages in terms of materials and processes. This innovative technology, which has seen significant advancements over the past decade, is regarded as a more sustainable alternative to conventional concrete, a key factor driving increased interest in the industry.
The process consumes and wastes less material during construction projects, saving resources. Projects can be completed more quickly, with less equipment and labor needed. This reduces carbon emissions due to the decreased need for transportation and carbon-emitting plant machinery on site. The faster construction times and reduced need for labor and equipment contribute to significant cost savings and a safer working environment.
Another advantage is increased design freedom, allowing for more customization during a project. If it can be designed in the software, a structure can be constructed by the 3D printer. The same design can be replicated multiple times, ensuring consistency and quality.
However, there are drawbacks to this method. Automating building processes could potentially lead to job losses, although there is an argument that workers can be upskilled with machines performing repetitive, menial tasks.
Another disadvantage of 3D printing concrete is the limited variety of materials that can be used. If errors occur during the design phase, the printer will produce structures with quality issues, leading to potential uncertainty during on-site construction.
Despite the challenges, 3D concrete printing continues to attract intense industry interest.3,4
Diverse Applications of 3D-Printed Concrete
The growing number of 3D-printed structures is a testament to technological advancements over the past decade. In the future, this technology has the potential to construct entire communities in a fraction of the time, addressing housing shortages worldwide.
It has been used to print houses, commercial buildings, hotels, and infrastructure such as bridges and drainage structures. Aside from producing entire structures, 3D concrete printing can be used to construct decorative features, including water fountains, fireplaces, and letters on monuments.1
Leading 3D Concrete Printing Solutions on the Market
Several commercial 3D concrete printing solutions are currently available on the market.
ICON’s Vulcan Printer is an incredibly popular gantry system that costs around $250,000. It has been widely used in the US and Latin America, offering good value for money.
The BOD2 printer from COBOD, a second-generation 3D printer, features customizable printer heads and a modular design. While the BOD2 is significantly more expensive, with prices reaching up to €1 million, it features an innovative surface mapping tool designed to accommodate uneven ground.
CyBe Construction has released the CyBe RC 3Dp, a versatile printer with two distinct models: a stationary option and a mobile version. CyBe’s solution incorporates a mix pump, building material storage, proprietary software, and a robotic arm. The mobile version is equipped with rubber tracks for navigating uneven terrain and hydraulic feet for stability during printing.1
Regarding materials, a noteworthy product is the D.fab family of admixtures by Mexican cement company Cemex. Incorporating this admixture into conventional concrete increases its malleability and fluidity, making it printable. Angola has already used this innovative material for the country’s first 3D-printed structure.2
The Future of 3D Printed Concrete Construction
3D concrete printing stands at the intersection of construction, software, and robotics, incorporating multiple disciplines and innovative technologies.4 This innovative building technology has the potential to truly revolutionize the construction industry by addressing environmental, sustainability, and cost issues while also offering a viable solution to the affordable housing crisis affecting many nations.
Despite the challenges ahead for this emerging technology, the benefits of 3D-printed concrete have been well-publicized over recent years, presenting a unique opportunity for the construction industry in the 21st century.
For More on Sustainability: Advancing Sustainable Construction with Mycelium-Based Solutions
References and Further Reading
- Reichenbach, M. (2023) The Ultimate Guide to Concrete 3D Printing in 2023. [Online] 3D Sourced. Available at: https://www.3dsourced.com/guides/concrete-3d-printing/ (Accessed on 15th March 2024)
- Kauppila, I. (2023) 3D Concrete Printing – The Ultimate Guide. [Online] All3DP. Available at: https://all3dp.com/1/3d-concrete-printing-guide/ (Accessed on 15th March 2024)
- The Engineering Community. (2019). What is 3D Concrete Printing? Its advantages and disadvantages. [Online] The Engineering Community. Available at: https://www.theengineeringcommunity.org/what-is-3d-concrete-printing-its-advantages-and-disadvantages/ (Accessed on 15th March 2024)
- Ahmed, G.H. (2023) A review of “3D concrete printing”: Materials and process characterization, economic considerations and environmental sustainability Journal of Building Engineering. doi.org/10.1016/j.jobe.2023.105863
