Consumer Guide to an Energy Efficient Brick Home from Austral Bricks

Bricks have long been accepted as Australia's preferred building material. Almost 90 percent of new houses are built in brick.

In recent years, community, industry and regulatory attention has focused on reducing energy use in all its forms. The Building Code of Australia and state regulations require new houses to achieve energy-efficiency goals.

Building materials and design play a key role in energy efficiency. But where does brick fit into this and what do you need to know to make an informed decision?

How Much Energy Do We Use?

You may be surprised to learn that a massive 39 percent of the energy consumed in an average Australian household goes into heating and cooling. By comparison lighting and cooking together consume just nine percent.

So anything that will reduce your heating and cooling bills will pay big bonuses. But is it possible to reduce heating and cooling energy while still maintaining a reasonable thermal comfort level inside the home.

Passive Design

Passive design manages the sun's energy to naturally boost your house's heating and cooling. There are four key passive design principles:

• Orientation
• Ventilation
• Insulation
• Thermal Mass

Figure 1. Passive house design

Orientation

Large glass areas on the north side (which gets the most favourable sun) lets in the low winter sun. Simple shading such as eaves will block out the higher summer sun.

Ventilation

Once the peak of the summers day has passed, air is allowed to enter and leave the building, cooling it – and its occupants – naturally. Cross ventilation is maximised by generous openings on either side of the house with minimal internal obstructions.

Insulation

Wall and ceiling insulation acts as a barrier to the movement of heat. The effectiveness of insulation is measured by its R-value. However, the R-value does not tell the full story. Different walls may have similar R-values but not perform identically, as the R-value does not reflect the beneficial effects of thermal mass.

Thermal Mass

Heavy, dense wall materials, such as brick from Austral Bricks, absorb heat and slow down its transfer through the wall. This moderates temperature changes, slowing down heat gain in summer, and storing heat in winter. This is called its 'lag time'. Lightweight walls made from fibro, weatherboard and corrugated iron have very low thermal mass when compared with brick walls.

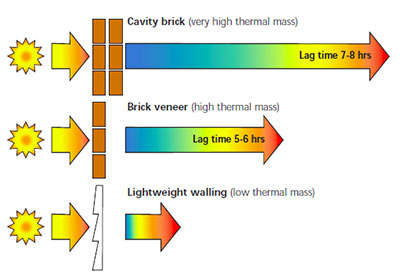

Figure 2. Because of their thermal mass, brick walls are more able to moderate temperatures than lightweight walls, even though their R-values may be similar.

Think Thermal Mass. Think Brick.

The first two principles of energy efficient passive design – orientation and ventilation – must be designed into the building. Insulated walls have similar R-values regardless of the material. However, the choice of wall material has a major influence on the amount of thermal mass in a building.

A simple and economical way to build in thermal mass is with Austral bricks. Clay bricks have a very high thermal mass and will help make your home comfortable and energy efficient.

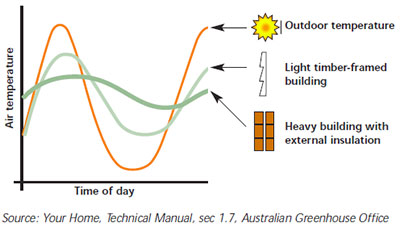

Figure 3. Thermal mass effect on temperature fluctuations

Research at The University of Newcastle has shown that "a large portion of the heat is reflected back to the external environment by the exterior surface of the brick." It also concluded that in summer the inside temperature in brick buildings stayed within the "human comfort zone" despite severe fluctuations in the external temperature.

What can we conclude?

• Passive design will lower your heating and cooling bills. That's good for you and good for the environment.
• Thermal mass is essential to any passive design
• Brick is a simple and economical method of building thermal mass into your next home.

Source: Austral Bricks
For more information on this source please visit Austral Bricks
